Intercooler Pipe and Boot Kit

Features & Details:

Installation Instructions
Direct fit for the 1999-2003 7.3L Powerstroke
Mandrel-bent hot & cold side aluminum pipes for maximum durability
Mishimoto Silicone Boots with DuraCore technology
DuraCore provides superior resistance to heat, pressure, fuel, and oil
Mishimoto Constant-Tension T-Bolt Clamps

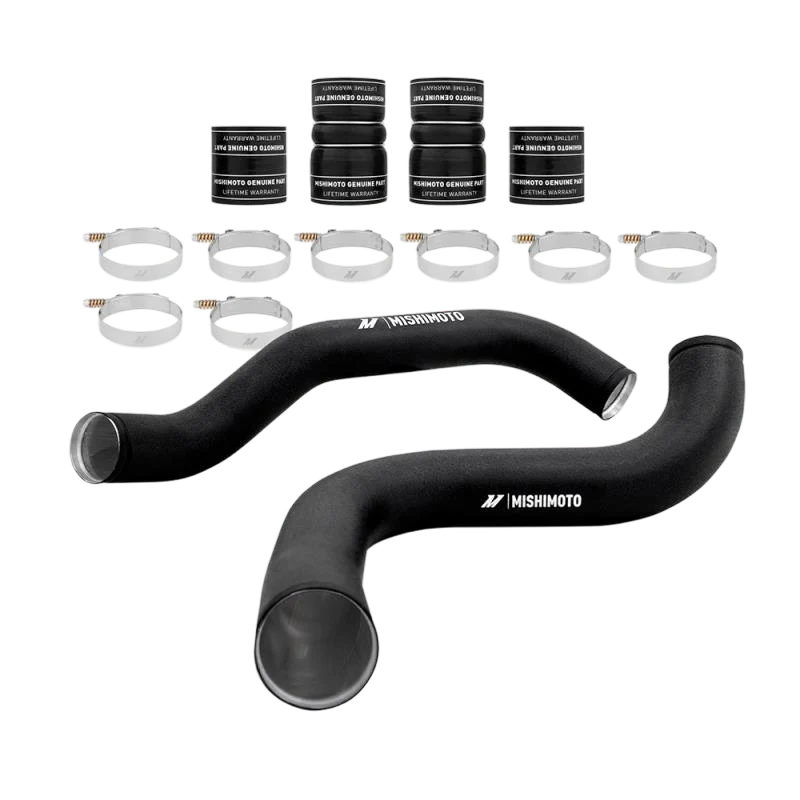

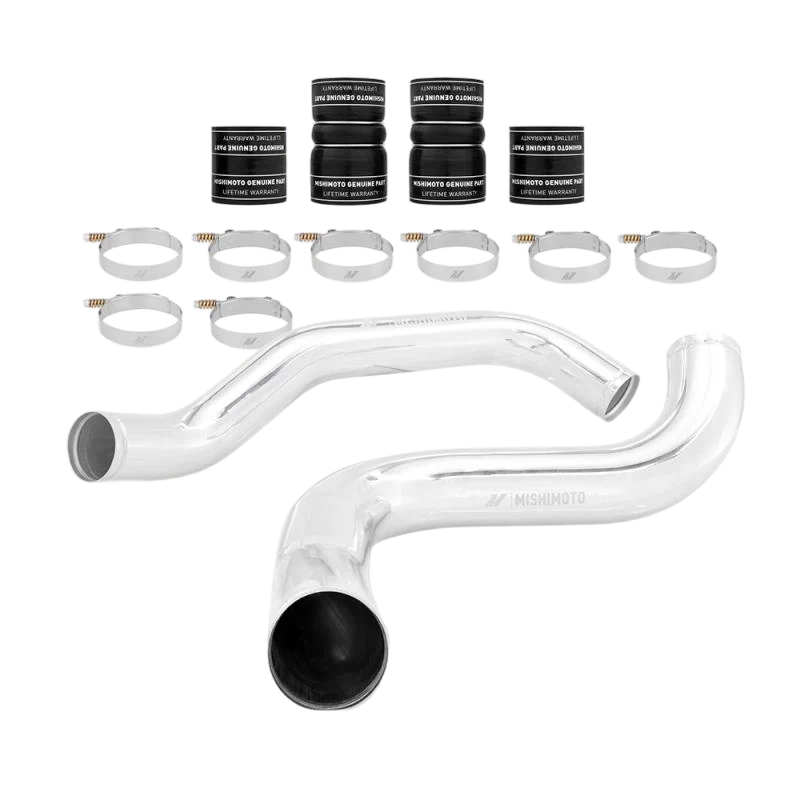

Available in a polished and wrinkle-black powder-coated finish
Installs in under one hour
Includes the Mishimoto Lifetime Warranty for a worry-free installation

Description:

Enhance the durability of your Ford Super Duty with the Mishimoto Intercooler Pipe and Boot Kit designed for the 1999-2003 Ford F-Series 7.3L Powerstroke. These robust turbodiesel engines generate significant boost pressure, delivering the formidable torque essential for demanding tasks. However, this relentless performance can strain the intercooler system, particularly its piping.

The Mishimoto kit replaces the stock system with resilient, mandrel-bent aluminum pipes for both the intercooler's hot and cold sides, ensuring maximum durability. Included in the kit are Mishimoto Silicone Boots featuring DuraCore technology, a synthetic material that forms the innermost layer of all Mishimoto Silicone Diesel Boots. DuraCore offers exceptional resistance to heat, pressure, fuel, and oil, significantly prolonging the lifespan of the boots by preventing leaks and blowouts.

To further bolster reliability, the kit incorporates Mishimoto Constant-Tension T-bolt Clamps, ensuring precise and consistent holding power. For optimal performance, it's recommended to complement this kit with our Mishimoto Ford 7.3L Powerstroke Performance Intercooler.

Available in polished or wrinkle-black powder-coated finish, the Mishimoto Intercooler Pipe and Boot Kit comes with the added peace of mind of the Mishimoto Lifetime Warranty, guaranteeing worry-free installation and long-term performance.

Fits: 1999-2003 Ford F250-F550 Super Duty 7.3 Powerstroke & 2000-2003 Ford Excursion 7.3 Powerstroke

Installation Notes: 27 in-lbs (3NM) is recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
